工業用風扇｜AC風扇｜KA1238
規 格：120*120*38.5mm
產品備注：可搭配所有符合DIN規格之自控器具，適合歐、美、日、國產之國 際標準元器件
詳細規格
| 型號 | 軸承類別 | 電壓 | 頻率 | 電流 | 功率 | 轉速 | 風量 | 靜壓 | 噪音值 | 重量 |
|---|---|---|---|---|---|---|---|---|---|---|
| Model No. | Bearing | Vac | Hz | A | W | R.P.M | CFM | Inch-H²O | dB-A | Weight |
| 停產KA1238LA1SAT(L) | 合銅 | 115 | 50/60 | 0.13/0.14 | 8.86/9.21 | 2100/2400 | 75.9/82.8 | 0.083/0.170 | 37/39 | 550 |
| 停產KA1238LA1BAT(L) | 滾珠 | 115 | 0.13/0.14 | 8.86/9.21 | 2100/2400 | 75.9/82.8 | 0.083/0.170 | 37/39 | ||
| 停產KA1238MA1SAT(L) | 合銅 | 115 | 0.21/0.25 | 13.7/15.8 | 2500/2700 | 86.4/91.3 | 0.169/0.211 | 38/41 | ||
| 停產KA1238MA1BAT(L) | 滾珠 | 115 | 0.21/0.25 | 13.7/15.8 | 2500/2700 | 86.4/91.3 | 0.169/0.211 | 38/41 | ||

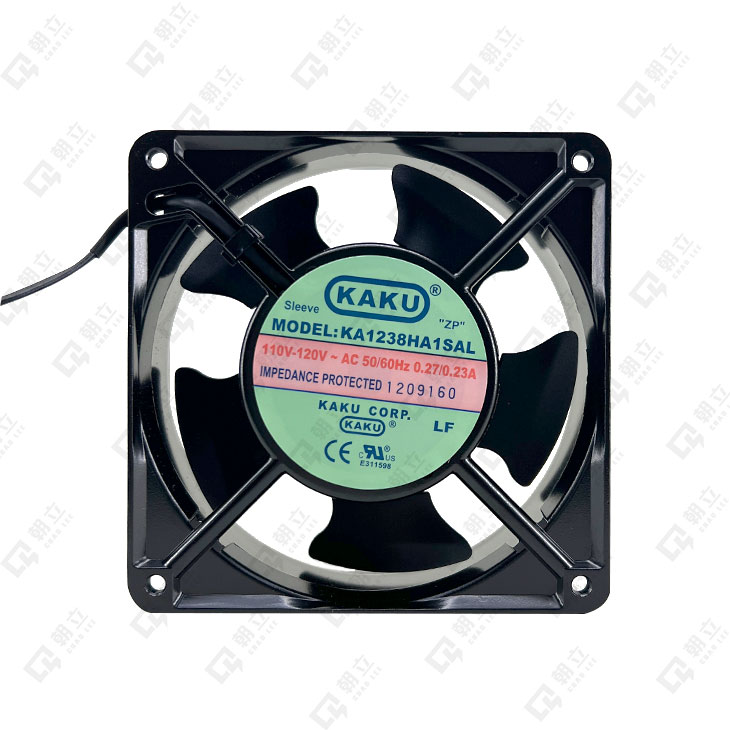

| KA1238HA1SAT KA1238HA1SAL |
合銅 | 115 | 0.23/0.27 | 23.97/28.66 | 2500/2700 | 102.8/111.9 | 0.239/0.252 | 46.4/48.1 | ||

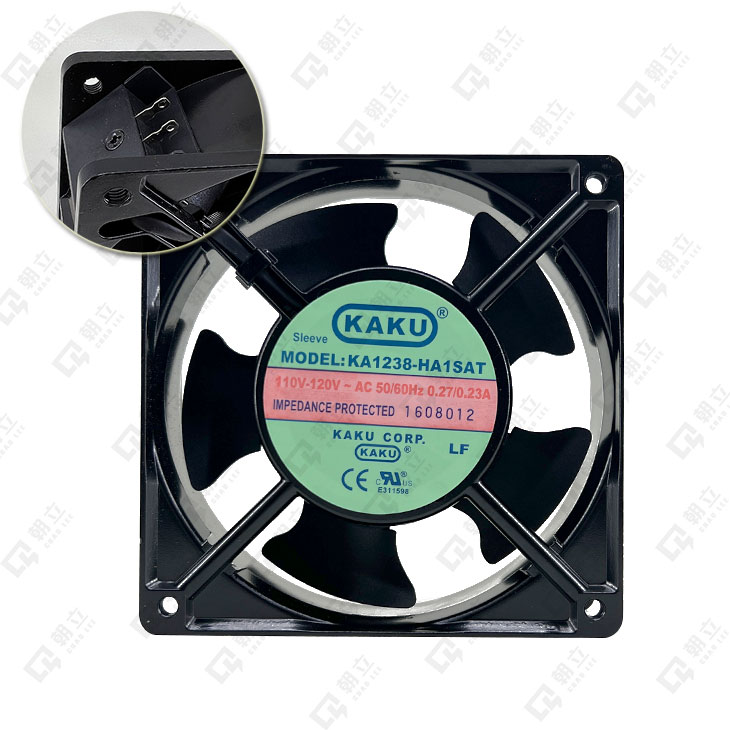

| KA1238HA1BAT KA1238HA1BAL |
滾珠 | 115 | 0.23/0.27 | 23.97/28.66 | 2500/2700 | 102.8/111.9 | 0.239/0.252 | 46.4/48.1 | ||
| 停產KA1238LA2SAT(L) | 合銅 | 230 | 0.07/0.07 | 9.40/9.90 | 2100/2400 | 75.9/82.8 | 0.083/0.170 | 37/39 | ||
| 停產KA1238LA2BAT(L) | 滾珠 | 230 | 0.07/0.07 | 9.40/9.90 | 2100/2400 | 75.9/82.8 | 0.083/0.170 | 37/39 | ||
| 停產KA1238MA2SAT(L) | 合銅 | 230 | 0.09/0.10 | 12.60/13.70 | 2500/2700 | 86.4/91.3 | 0.169/0.170 | 38/41 | ||
| 停產KA1238MA2BAT(L) | 滾珠 | 230 | 0.09/0.10 | 12.60/13.70 | 2500/2700 | 86.4/91.3 | 0.169/0.170 | 38/41 | ||

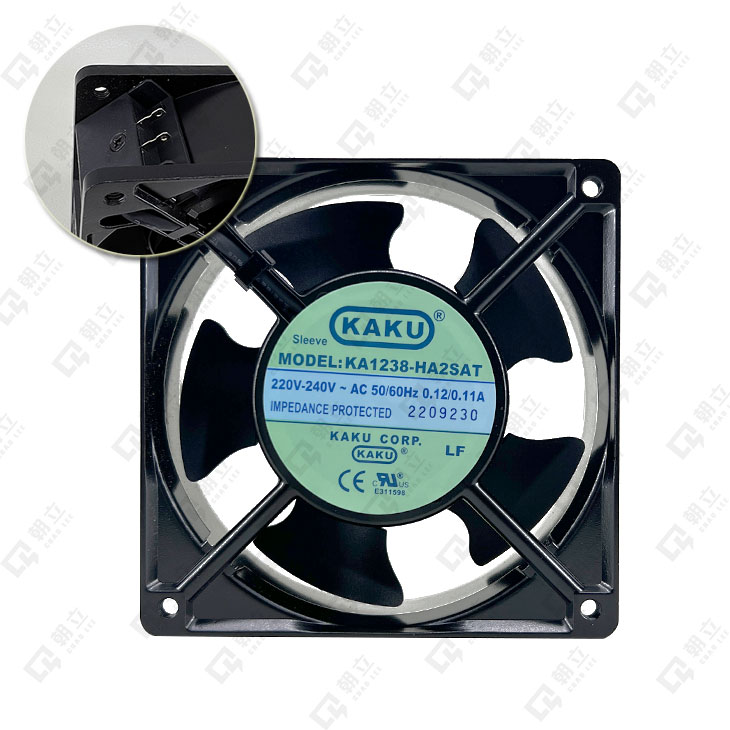

| KA1238HA2SAT KA1238HA2SAL |
合銅 | 230 | 0.11/0.12 | 21.38/21.59 | 2500/2700 | 102.8/111.9 | 0.239/0.252 | 46.4/48.1 | ||
| KA1238HA2BAT KA1238HA2BAL |
滾珠 | 230 | 0.11/0.12 | 21.38/21.59 | 2500/2700 | 102.8/111.9 | 0.239/0.252 | 46.4/48.1 | ||
| KA1238HA24BAT | 滾珠 | 24 | 0.64/0.73 | 14.3/16.3 | 2800/3000 | 102.8/111.9 | 0.239/0.252 | 46.4/48.1 | ||
| KA1238HA3BAT | 滾珠 | 380 | 0.5/0.6 | 54/67 | 2800/3000 | 102.8/111.9 | 0.239/0.252 | 46.4/48.1 | ||

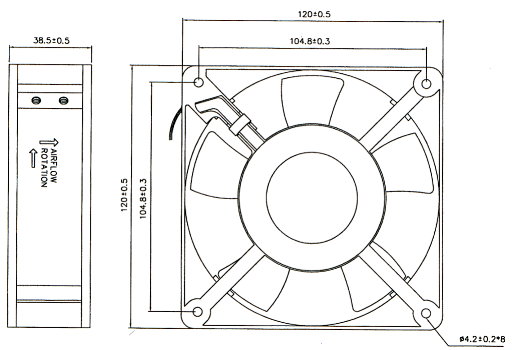

| 尺寸圖 |  |
|||||||||
