規格表
| 件號 | A + B + C | 適用規格 | ||
|---|---|---|---|---|
| E01 | 45 | 15 | 100 | 10TX40-1/Ø |
| E02 | 55 | 15 | 120 | 10TX50-1/Ø |
| E03 | 65 | 15 | 140 | 10TX60-1/Ø |
| E04 | 105 | 15 | 220 | 10TX100-1/Ø |
| E05 | 55 | 35 | 120 | 10TX50-2/Ø |
| E06 | 85 | 15 | 180 | 10TX80-1/Ø |
| E07 | 85 | 55 | 180 | 10TX80-3/Ø |
| E08 | 85 | 35 | 180 | 10TX80-2/Ø |
| E09 | 105 | 35 | 240 | 10TX100-2/Ø |
| E10 | 45 | 35 | 100 | 10TX40-2/Ø |
| E11 | 55 | 15 | 55 | 10TX50-1/Ø-1 |
| E12 | 55 | 15 | 180 | 10TX50-1/Ø-2 |
| E13 | 125 | 55 | 260 | 10TX120-3/Ø |
| E14 | 125 | 35 | 260 | 10TX120-2/Ø |
| E15 | 45 | 15 | 180 | 10X40-1/Ø-1 |
| E16 | 105 | 55 | 120 | 10TX100-2/Ø-1 |
| E17 | 65 | 55 | 140 | 10TX60-2/Ø |
| E18 | 65 | 15 | 180 | 10TX60-1/Ø-1 |
| E19 | 85 | 0 | 180 | 10TX80/0 |
| E20 | 85 | 15 | 85 | 10TX80/1-1 |
| E21 | 45 | 15 | 45 | 10TX40/1-2 |
| E22 | 105 | 35 | 220 | 10TX100-2/Ø-2 |
| E23 | 65 | 55 | 140 | 10TX60-3/Ø |
| E24 | 55 | 55 | 55 | 10TX50-2/Ø-1 |
| E25 | 105 | 75 | 220 | 10TX100-4 |
| E26 | 105 | 75 | 290 | 10TX100-4/Ø-1 |
| E27 | 105 | 35 | 105 | 10TX100-2/Ø |
| E28 | 85 | 55 | 85 | 10TX80-3/Ø |
| E29 | 65 | 15 | 65 | 10TX60-1/Ø |
| E30 | 105 | 15 | 105 | 10TX100-1/Ø-1 |
| E31 | 85 | 25 | 85 | 10TX80/2-1 |
| E32 | 85 | 25 | 85 | 15TX120/2-1 |
| E33 | 85 | 45 | 85 | 10TX80/2-2 |
| E34 | 155 | 40 | 320 | 12TX150-2/Ø |
| E35 | 115 | 85 | 155 | 10TX150/4-1 |
| E36 | 155 | 85 | 330 | 10TX150-4/Ø |

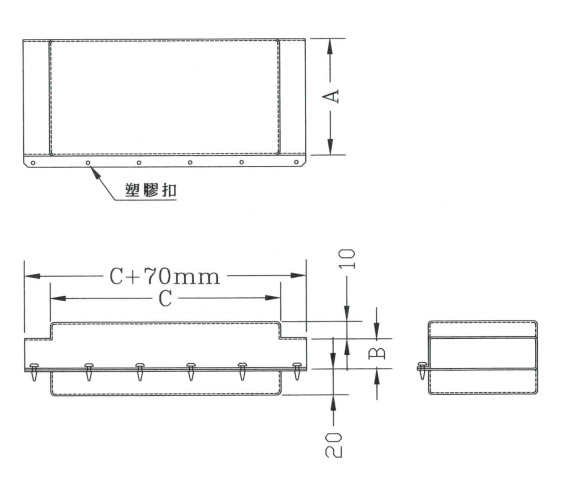

| 尺寸圖 (mm) | ||||
 |
||||
